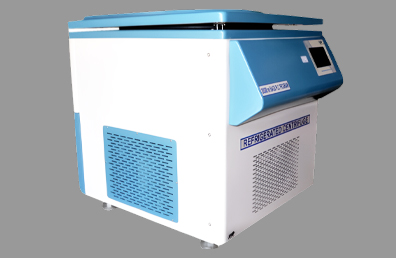

Heavy Duty Centrifuge (Blood Bank)

Technical Specifications

Parameter Unit ATMP6000R ATMP6000R-PLC
Process Controls Type Bi-directional encoder Bi-directional encoder
Menu Driven Programs No’s 99 99
Acceleration Profile Steps 1 - 9 1 - 9
Deceleration Profile Steps 1 – 9 & Coasting 1 – 9 & Coasting
Max. Speed RPM 4500 Settable ± 10 RPM 4500 Settable ± 10 RPM
Max. RCF g 6000 6000
Max. Time HH:MM 0 to 99 HR 59 Min 0 to 99 HR 59 Min
Dimension ( W X D X H ) MM 840 x 940 x 950 0 to 99 HR 59 Min840 x 940 x 950
Recom. line voltage KVA 7.5 7.5
corrector Degree 4 Degree C - 30.0 Degree C 4 Degree C - 30.0 Degree C
Temp Range Volts 200-240V AC 200-240V AC
Input Power Supply HZ 50 HZ 50 HZ
Frequency Single Phase Single Phase
