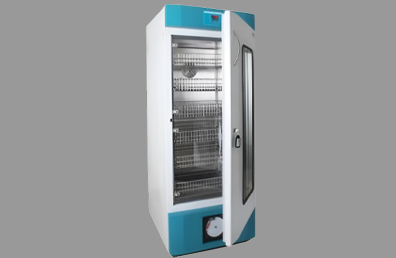

Blood Bank Refrigerator
Blood Bank Refrigerator & Optional Accessories
Blood Bank Refrigerators come in five sizes andare designed to meet the stringent standards forstoring whole blood. The instrument's outer body iscomposed of thick gauge Mild Steel that has beenpowder coated, and the inner chamber is built of Stainless Steel (304). The Micro ControlledTemperature Controller with Audio Visual Alarm inCase of Temperature Deviation is included in thecomprehensive assortment of 4°.0 C refrigerators.
- 7-day circular temperature recorder with RS 485 interface / Multi- or single-channel data logging system
- Battery Support for temperature display and temperature recorder for up to 6 hours.
Technical Specifications Of Blood Bank Refrigerator
| MODEL | ATR-100 | ATR-200 | ATR-300 | ATR-400 | ATR-500 |
|---|---|---|---|---|---|
Temperature |
4.0°C with ± 1.0° C Accuracy. | 4.0°C with ± 1.0° C Accuracy. | 4.0°C with ± 1.0° C Accuracy. | 4.0°C with ± 1.0° C Accuracy. | 4.0°C with ± 1.0° C Accuracy. |
High/Low Alarm |
Pre-set High at 6.0°C and Low at 2.0°C (can be changed). | Pre-set High at 6.0°C and Low at 2.0°C (can be changed). | Pre-set High at 6.0°C and Low at 2.0°C (can be changed). | Pre-set High at 6.0°C and Low at 2.0°C (can be changed). | Pre-set High at 6.0°C and Low at 2.0°C (can be changed). |
Inner Size (WxDxH cm) |
45x40x62 | 45x40x95 | 62X52x95 | 62x52x130 | 60x60x140 |
Volume (litres) |
110 litres | 180 litres | 300 litres | 400 litres | 425 litres |
No of Trays |
2 Nos. | 4 Nos. | 4 Nos. | 5 Nos. | 6 Nos. |
Blood bags (Approx.) |
60/450 ml | 120/450 ml | 200/450 ml | 250/450 ml | 300/450 ml |
Operating Voltage |
220 - 240 V AC 50 Hz Single Phase | 220 - 240 V AC 50 Hz Single Phase | 220 - 240 V AC 50 Hz Single Phase | 220 - 240 V AC 50 Hz Single Phase | 220 - 240 V AC 50 Hz Single Phase |
