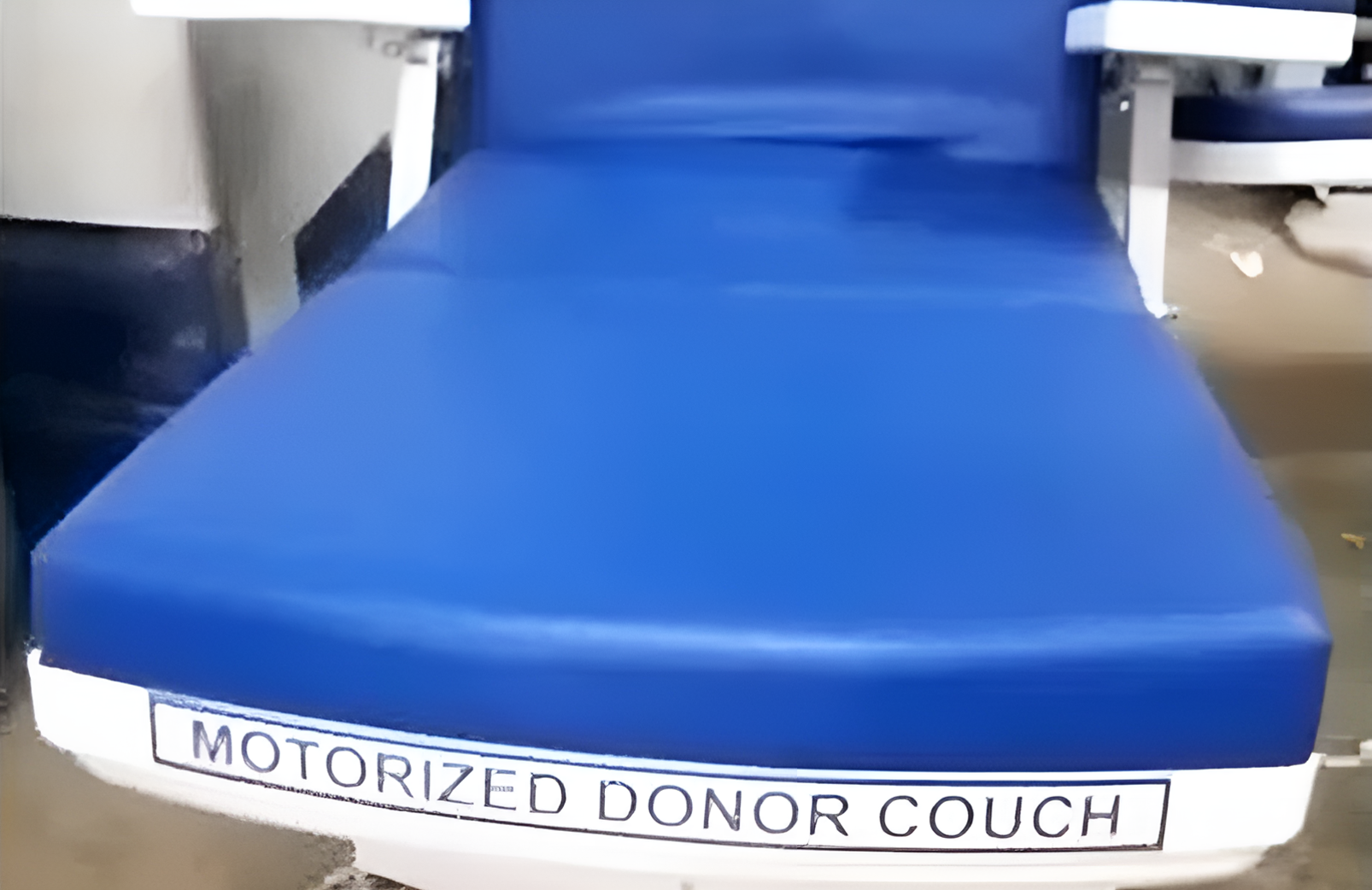

Blood Donor Couch
Blood Donor Couch

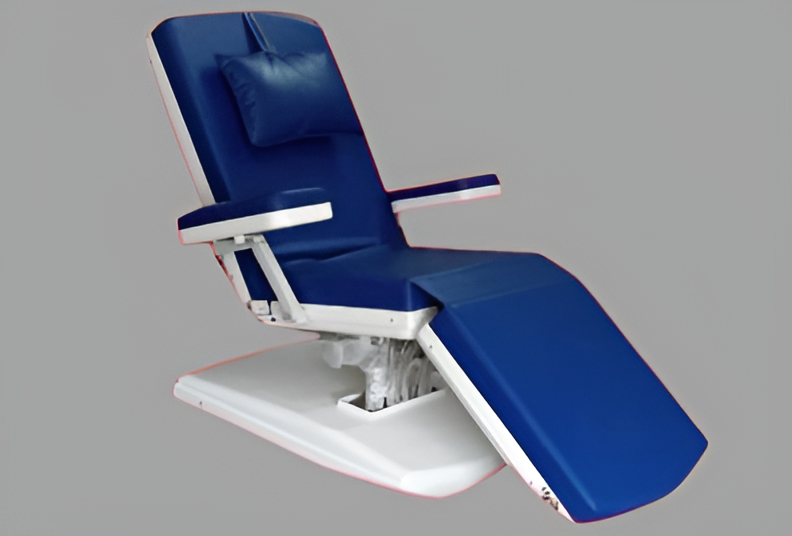

The Dual Actuator Blood Donor Couch was created to make blood extraction quicker, safer, and more comfortable for the donor. The position of the donor can be readily modified to either a comfy easy chair or a bed. All of the surfaces are clean and smooth, are easily accessible, and can be cleaned. The product is safer because the electrical and mechanical equipment are housed inside the framework. To enhance donor comfort, seat parts are created with ergonomic considerations in mind. Both sides have a facility for collecting blood. Based on the concepts of haemodynamic.
Technical Specifications Of Blood Donor Couch
| CAT NO | ATBDC-10 | ATBDC-11 ABS |
|---|---|---|
Power Supply |
230 VAC | 230 VAC |
Weight |
60 Kg | 60 Kg |
Lifting Capacity |
150 Kg | 150 Kg |
Control |
Corded Remote | Corded Remote |
Power Consumption |
100 W | 100 W |
Movement Actuation |
DC Motor | DC Motor |
Size in Normal Condition |
620 x 2050 x 1440 mm (W x D x H) | 620 x 2050 x 1440 mm (W x D x H) |
Size in Stretched Condition |
620 x 2050 x 1100 mm(W x D x H) | 620 x 2050 x 1110 mm(W x D x H) |
Length of Arm rest |
60 cm | 60 cm |
Upholstery |
Soft Upholstery of 4.0 thick | Soft Upholstery of 4.0 |
Battery Support |
------- | Structur |
MOC |
M.S BODY | M.S.Body with ABS Finish |
