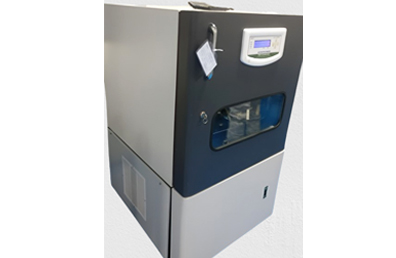

Temperature controlled Shakers
Temperature controlled Shakers
Temperature controlled shakers are robust yet flexible to use in research & industrial apllications. The proven triple eccentric counterbalanced drive mechanism coupled with high efficient temperature control module delivers the desired results in shake flask culturing of micro organisms. Wide speed and temperature range enables growth of varied cell types.
Specifications
| ATIS 124A | ATIS 124C | ||
|---|---|---|---|
Speed range |
30-350 rpm | 30-350 rpm | |
Speed Drive |
BLDC/Brushless AC | ||
Speed Accuracy |
+/-2 RPM | +/-2 RPM | |
Orbital Diameter |
25mm | 25mm | |
Tray size |
420x420 mm | 420x420 mm | |
Temperature Range |
Amb +7°C to 70°C | 10°C to 70°C | |
Temperature Control Accuracy |
+/-0.1°C | +/-0.1°C | |
Power Watts |
570 | 900 | |
Electrical Requirement |
230V, 50Hz, 116A | 230V, 50Hz, 116A | |

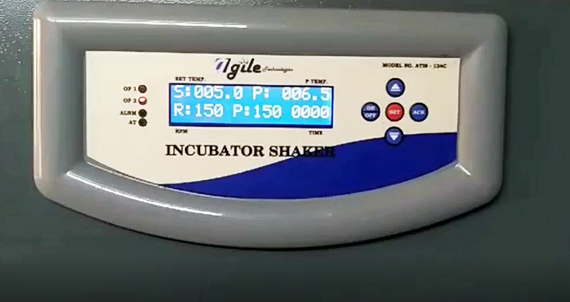

Display |
LCD | LCD | |
MOC |
Outer - MS Powder Coated Inner - SS 304 | ||
Dimensions WxDxH(Internal) |
490x500x430mm | 490x500x430mm | |
Dimensions WxDxH(External) |
540x750x700mm | 540x750x800mm | |
Basic Weight |
85 kgs | 100 kgs | |
| Flask Holding Capacity for Universal Tray (Erlenmeyer) | |||
100ml |
36 | 36 | |
250ml |
25 | 25 | |
500ml |
16 | 16 | |
1000ml |
9 | 9 | |
2000ml |
4 | 4 | |
| Option Features | |||
Photosynthetic Light Bank(flumination) |
yes | yes | |
Stationary tray For incubation |
1 | 1 | |
UV-C lamp for De-contamination |
|||
Timer for Speed Temperature |
yes | yes | |
Gas purging facility,Humidity measurement |
|||
Data Logging facility |
no | no | |
